dual 40kV cascade multiplier

Here we go...

Above: setting up the 4" gap

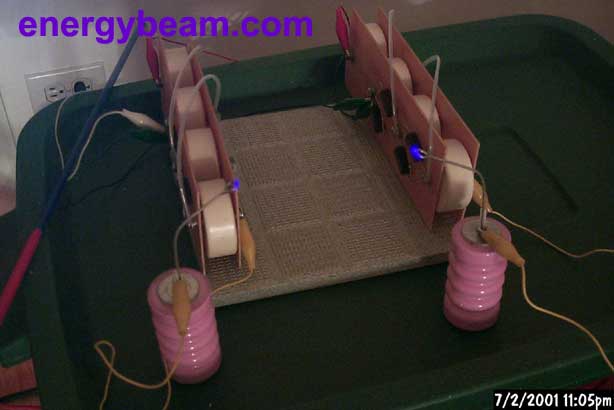

Above: 4" corona discharge

Above: 4" single discharge

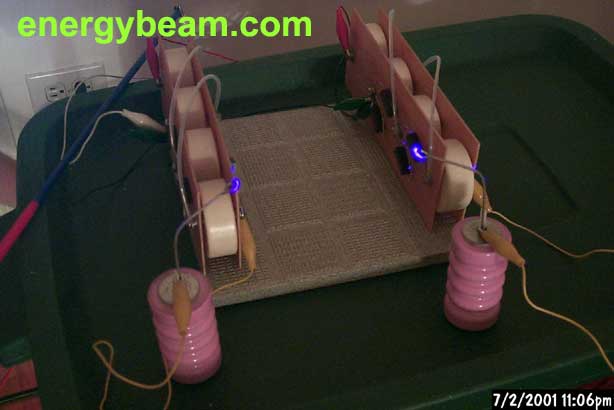

Above: 4" more corona

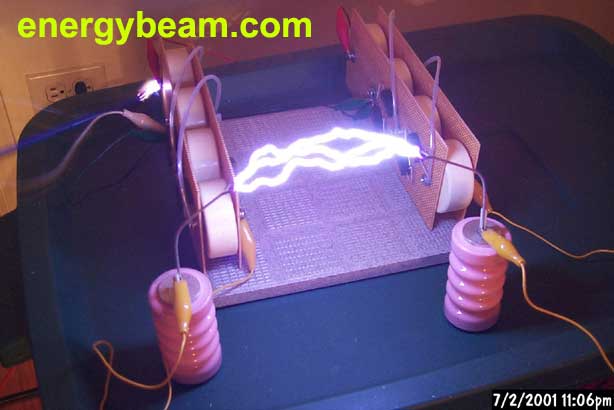

Above: 4" multiple arcs!

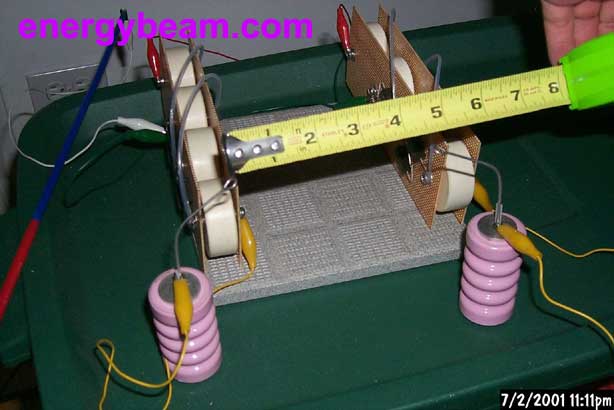

Above: setting up for 4.5" gap

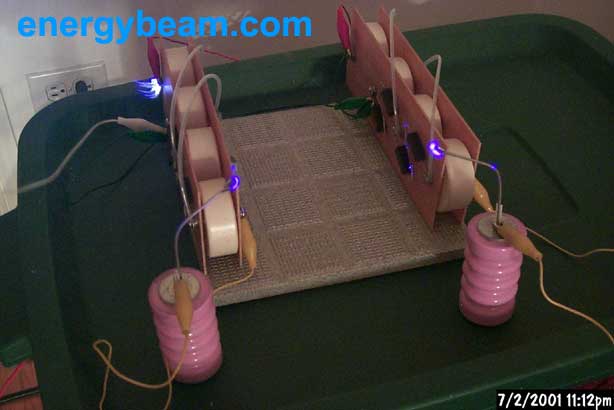

Above: 4.5" corona. Tranformer blew out but I did get a few arcs.

At this point my transformer pretty much gave up. There was intense arcing from the grommet where one lead exits the steel case. I'll try some heatshrink and silicone junk on there so see if it can be saved.

back the other other sparks
